Grooving

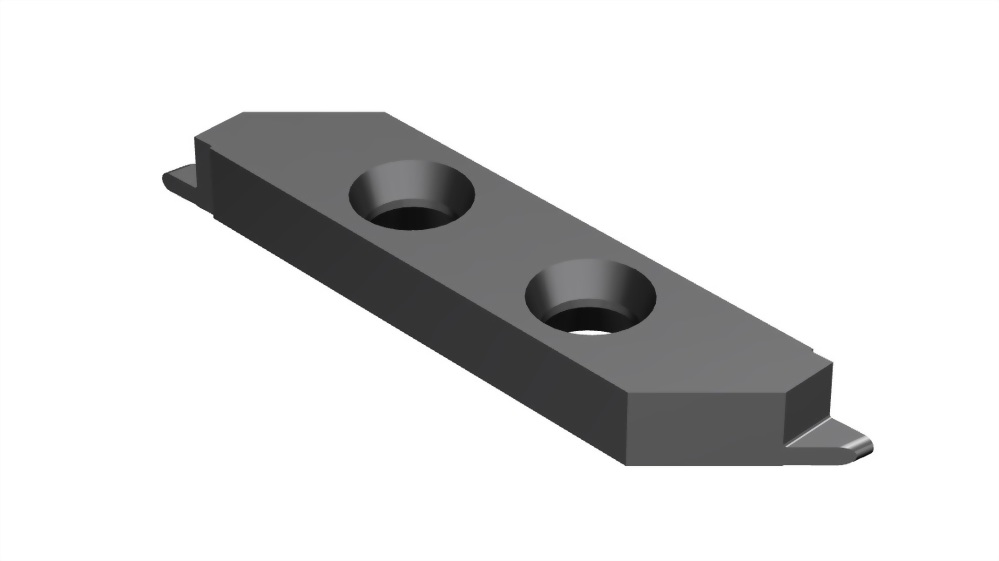

Model : RG37844

Grade-Coating



G12XF-TIN
G12XF-TICN
G10CF-TIN
G10CF-TICN



Ordering Code

Insert ISO Code

Application

Dimension

L

T

r

GW1335-RG-100R

RG37844-050R

R-Grooving

(Right-handed)

2.2

1.0

0.5

GW1335-RG-200R

RG37844-100R

3.7

2.0

1.0

GW1335-RG-300R

RG37844-150R

4.2

3.0

1.5

GW1335-RG-400R

RG37844-200R

5.0

4.0

2.0

GW1335-RG-100L

RG37844-050L

L-Grooving

(Left-handed)

2.2

1.0

0.5

GW1335-RG-200L

RG37844-100L

3.7

2.0

1.0

GW1335-RG-300L

RG37844-150L

4.2

3.0

1.5

GW1335-RG-400L

RG37844-200L

5.0

4.0

2.0

Machining Condition Guide



Machining Material

Turning

Vc

m/min

Ap

/min

fs

mm/rev

Free-cutting steel

100~200

0.05~4.0

0.01~0.25

Low carbon steel

70~160

0.05~4.0

0.01~0.25

Carbon steel

55~120

0.05~4.0

0.01~0.20

Alloyed steel

45~100

0.05~4.0

0.01~0.15

Stainless steel

50~120

0.05~4.0

0.01~0.15

Aluminum alloy

200~1000

0.05~4.0

0.01~0.20

Copper alloy

90~500

0.05~4.0

0.01~0.30

Titanium alloy

25~70

0.05~4.0

0.01~0.08
