Ordering Code |
Insert ISO Code |

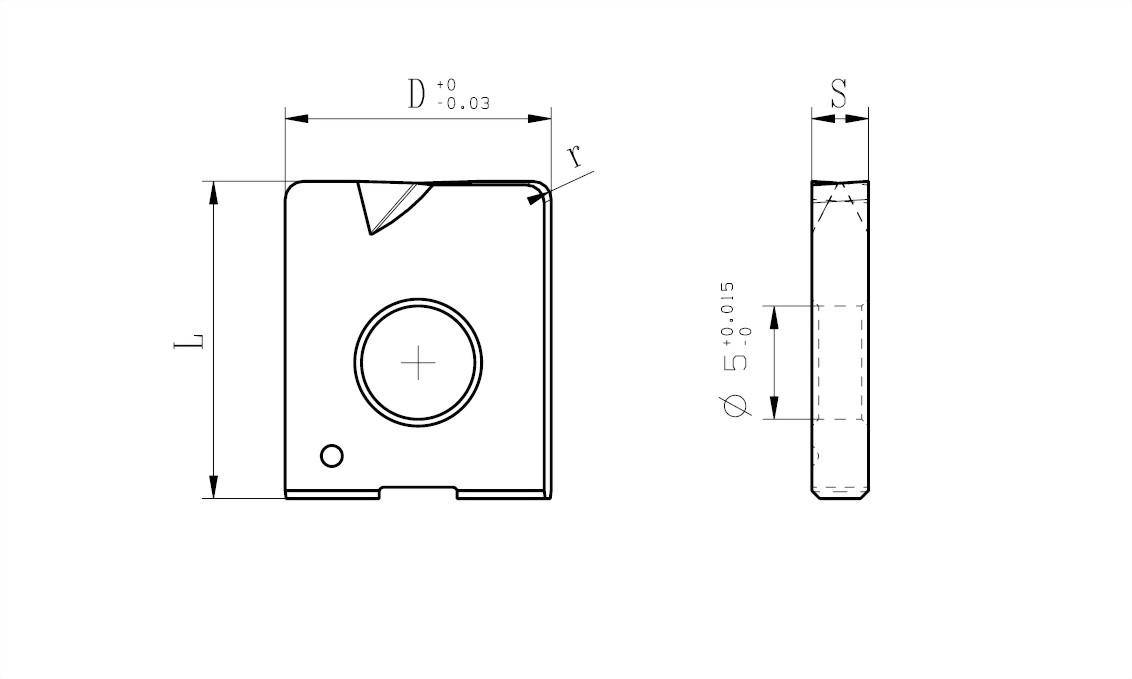

Dimension |
|||
|
D |
S |
L |
r |
||
|
GW1397-OR-FN08R |
WPOV12-FN08R |
12 |
2.5 |
14 |
0.8 |
|
GW1397-OR-FN10R |
WPOV12-FN10R |
12 |
2.5 |
14 |
1.0 |
|
GW1397-OR-FN20R |
WPOV12-FN20R |
12 |
2.5 |
14 |
2.0 |
|
GW1397-OR-FN30R |
WPOV12-FN30R |
12 |
2.5 |
14 |
3.0 |
|
GW1478-OR-FN10R |
WPOV16-FN10R |
16 |
3.0 |
16 |
1.0 |
|
GW1478-OR-FN20R |
WPOV16-FN20R |
16 |
3.0 |
16 |
2.0 |
|
GW1478-OR-FN30R |
WPOV16-FN30R |
16 |
3.0 |
14 |
3.0 |
|
GW1478-OR-FN40R |
WPOV16-FN40R |
16 |
3.0 |
16 |
4.0 |
|
GW1479-OR-FN10R |
WROV20-FN10R |
20 |
3.0 |
18 |
1.0 |
|
GW1479-OR-FN20R |
WROV20-FN20R |
20 |
3.0 |
18 |
2.0 |
|
GW1479-OR-FN30R |
WROV20-FN30R |
20 |
3.0 |
18 |
3.0 |
|
GW1479-OR-FN40R |
WROV20-FN40R |
20 |
3.0 |
18 |
4.0 |
|
GW1479-OR-FN50R |
WROV20-FN50R |
20 |
3.0 |
18 |
5.0 |
|
Machining Material |
Semi-Finishing |
Finishing |
||
|
Speed Vc |
Feed Fz |
Speed Vc |
Feed Fz |
|
|
Carbon steel |
170~230 |
0.1~0.3 |
170~230 |
0.10~0.15 |
|
Alloyed steel |
110~200 |
0.1~0.3 |
170~250 |
0.10~0.15 |
|
Stainless steel |
110~200 |
0.1~0.3 |
180~235 |
0.08~0.12 |
|
Cast iron |
150~270 |
0.1~0.3 |
265~275 |
0.08~0.12 |
|
Harden steel |
- |
- |
45~90 |
0.03~0.06 |
